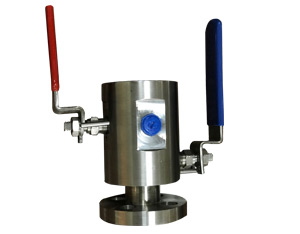

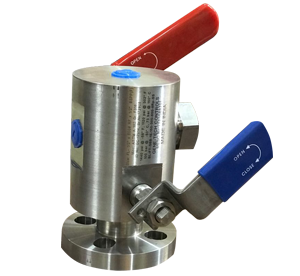

Slimline-Keyblock Valve
General Information
One piece ultra slim forged body combines a compact design with strength and reduced potential leak paths compared to conventional design. Material of constructions includes ASTM A350 LF2/A105, ASTM A182 F316/F316L and ASTM A182 F51.Valves can be supplied to NACE MR-01-75 specifications too.
Configuration
Ball/Needle/Ball Type (Flanged x Threaded, Flanged x Flanged Type)
Needle/Needle/Needle Type (Flanged x Threaded, Flanged x Flanged Type)
Ball/Needle Type (Flanged x Threaded Type)
Applications
Block& Bleed
Pressure Measurement
Sampling
Flow Measurement
Standard Features
- 1/2"NPT threaded female outlet as per ANSI/ASME B1.20.1
- 1/4"NPT threaded female vent connection as per ANSI/ASME B1.20.1
- ANSI B16.5 flanged inlet connections 1/2" to 2" size ASA150# to ASA 2500#
- Primary isolation valve shall be of Needle type or OS&Y design.
- Vent Valve shall be of Needle type or Anti-tempering design.
- Standard Vent Valves are offered with PTFE seat or graphite is also available. For any other gland packing, kindly refer to us.
- All valves are designed in accordance with ASME VIII, ANSI B16.34/B16.5, ANSI B31.3
- All valves are tested 1.1 times full seat pressure and 1.5 times full rated body pressure with gas and or hydraulic.
- All valves are100%tested in factory before dispatch.
