Gauge Valves
Gauge valves are available in the following configuration: two-way, multi-port, single block and double block and bleed .These Gauge valves are available with variety of end connections, screwed- male/female, tube ends . The wide range of gauge valves offered by us are used in a variety of applications including economical gauge isolation valves, primary/root piping valves, block and bleed pressure relief series and many more. Some of the salient features of our valves are as follows:-
Features
- Block and bleed gauge valve is specifically designed to facilitate safe, compact and economical gauge installation. These valve enables pressure to be safely vented without breaking threaded connections.

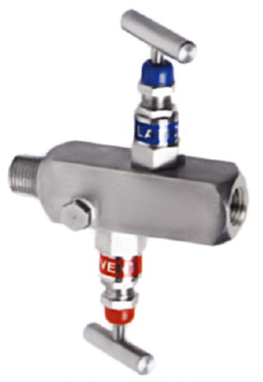

- Two Valve Block and Bleed Gauge Valves are single outlet gauge valves that combine isolating, calibrating and venting facilities in a single compact unit. These valves enable gauges, pressure transmitters or switches to be reliably installed and serviced, by reducing potential leak points. The vent port is threaded 1/4"FNPT on all valves and fitted with a plug. This facilitates installation of exhaust piping / tubing on hazardous services, which in turn contributes to operator safety.
- The Multi-port valve is universal use wherever more than one outlet is required and allowing the versatile positioning of gauges or pressure switches without requiring additional penetration of the main piping. The valve is supplied with replaceable seats, providing easy clean-out and seat replacement, it allow replacement of the soft seat insert without removing the valve from the line and operates in dirty service with repetitive bubble tight shut off.
